You see them every time you drive

What Are the Black Dots on Car Windshields For?

The black dots around a windshield are not just a fade effect. They help protect the adhesive edge and smooth the transition from black band to clear glass.

Quick answer

Those black dots are called frit, a ceramic paint baked permanently into the glass. The solid black band at the edge protects the adhesive that holds your windshield to the car frame from UV rays (UV destroys the glue over time). The dots fade into smaller and smaller spots toward the center, creating a gradient that smooths the visual jump from black to clear, reduces edge glare for the driver, and, here's the part most people miss, prevents optical distortion that happens during manufacturing when the glass is bent at high heat.

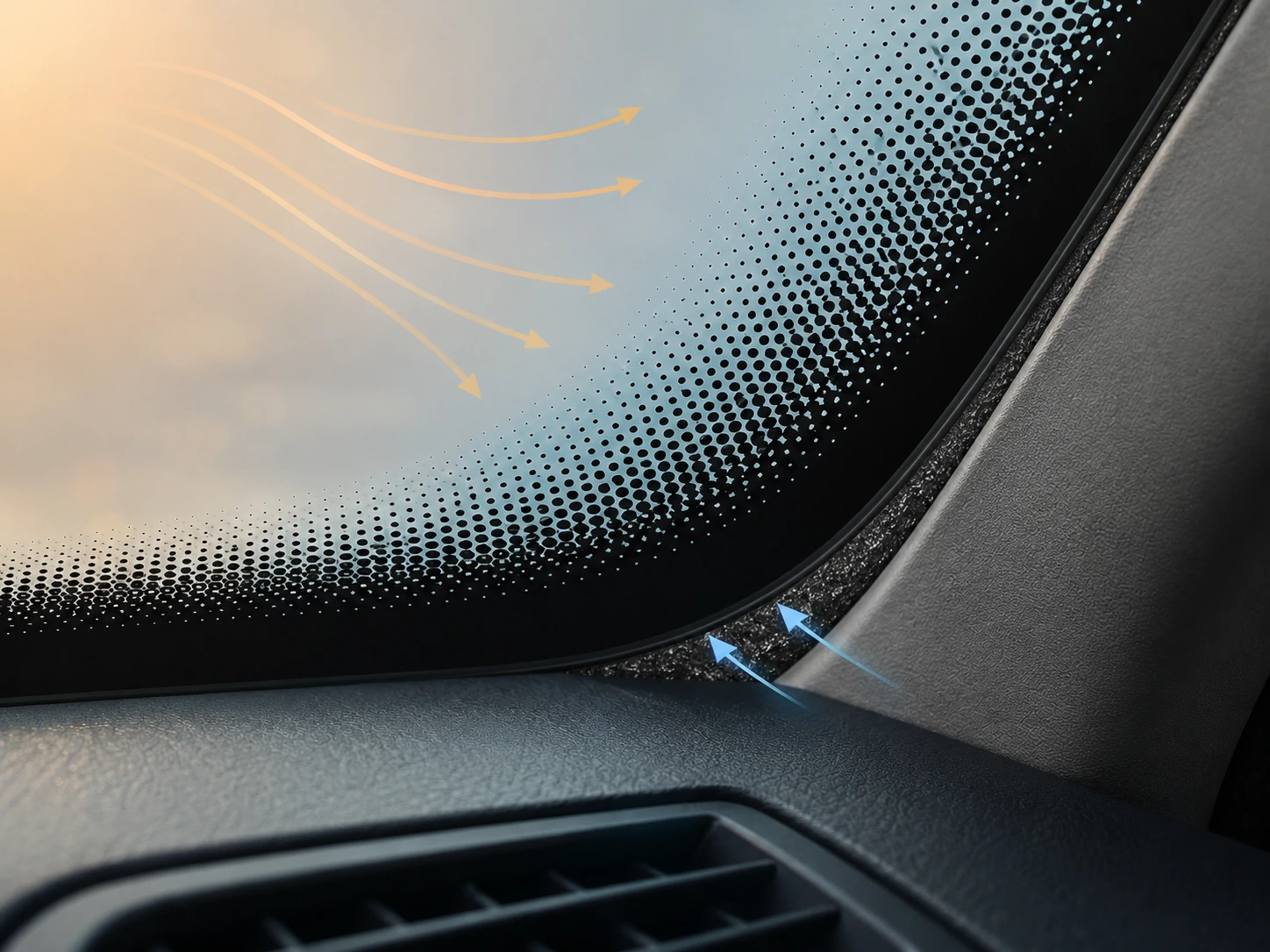

Close-up of a car windshield corner showing the frit band and black dot gradient pattern

Tiny diagram

Four jobs the frit pattern does

The solid band and the dot gradient are doing different things.

Solid frit band

Protects the polyurethane adhesive underneath from UV radiation that would break it down and loosen the windshield from the frame over time.

Rough bonding surface

The ceramic frit creates a textured surface the adhesive can grip. Glass alone is too smooth for a reliable bond.

Dot matrix gradient

The dots shrink from the band toward the clear glass. During manufacturing, the black band heats faster than transparent glass in the bending oven, the gradient smooths the temperature transition, preventing optical distortion called lensing.

Glare reduction + aesthetics

The gradual fade reduces visual contrast at the edge for the driver, and hides the adhesive bead from view, giving the windshield a clean, finished appearance.

Technical name

Frit (ceramic enamel)

Main job

UV protection for adhesive

The dot gradient

Prevents optical distortion

Can it be removed?

No, baked into the glass

It's ceramic paint baked into the glass, permanently

The black dots and band are called frit. It's a ceramic-based enamel that's screen-printed onto the glass and then fired at high temperature during manufacturing. It fuses directly into the glass surface.

You can't scratch it off or peel it. It won't come off in a car wash. It's part of the glass itself.

Cars in the 1950s and earlier used metal trim strips to hold windshields in place. When manufacturers switched to adhesive bonding in the 1960s, they needed a way to protect the glue from sunlight, and the frit band was the answer.

Myth vs Reality

Myth

The black dots help with defrosting or heating the windshield.

The rear window has a heating grid of fine wires that are visible as lines. Some people assume the front dots work the same way.

Reality

Front frit dots have nothing to do with heating.

The rear defrost grid is a completely different system with actual electrical wires. Front frit dots are ceramic paint, no electricity, no heat. They protect the adhesive and prevent visual distortion.

What the solid band does vs what the dot gradient does

Solid black band: Blocks UV rays from reaching the adhesive underneath. Provides a rough surface the glue can bond to. Hides the adhesive from view.
Dot matrix gradient: Smooths the temperature transition during glass bending to prevent lensing. Reduces visual glare at the edge for the driver. Creates a polished visual fade from black to clear.
Third visor frit (behind rear-view mirror): Found on many modern cars. Blocks sunlight that creeps through the gap between the two sun visors, an extra strip of dots just for driver comfort.

Safety note

Damaged frit is a structural warning sign

If the frit band on your windshield is visibly chipped, peeling, or cracked, get it inspected immediately. The windshield's bond to the frame runs along that band, and a well-bonded windshield can account for up to 80% of a vehicle's structural integrity in a rollover. It's not just glass. It's a safety system.

Quick answers

Common questions

What are the black dots on car windshields called?

They're called frit, a ceramic enamel paint baked permanently into the glass during manufacturing.

What do the black dots on a windshield actually do?

The solid band protects the adhesive from UV damage and provides a bonding surface. The dot gradient prevents optical distortion during glass bending and reduces glare for the driver.

Can the black frit be removed?

No. It's fired into the glass at high temperature and becomes part of the surface. It cannot be scratched or washed off.

Why do the dots get smaller toward the center?

To create a gradual temperature transition during manufacturing. When glass is bent in a hot oven, the black band heats faster than clear glass. The gradient reduces the sharp heat boundary, preventing optical distortion (lensing) in the finished windshield.

What is the group of dots behind the rear-view mirror for?

That's called a third visor frit. It blocks sunlight from the gap between the two sun visors, reducing glare for the driver in that specific blind spot.

When did frit start appearing on windshields?

In the 1950s and 1960s when car manufacturers switched from metal trim to adhesive bonding. The frit was developed to protect the adhesive from UV degradation.

Is damaged frit a problem?

Yes, the frit band is where the adhesive bonds the windshield to the frame. A windshield provides significant structural support in a crash. If the frit is cracked or chipped, get the windshield inspected by a professional.
